The brake and clutch bleeder removes air and renews the fluid, ensuring firm braking and precise engagement.
In this guide, learn when to use it, how to choose the best model, and the mistakes to avoid in order to increase workshop productivity.
What Is A Brake Bleeder?
A brake bleeder is a device that allows you to expel old fluid and air bubbles, introducing new fluid without contamination.
It is used in hydraulic braking systems and clutches, restoring the correct system pressure.
What Is A Brake And Clutch Bleeder Used For?
When there is air in the circuits, the pedal becomes spongy, pressure is lost, and braking may fail. To remove air and old fluid from the hydraulic system, a bleeder is used.
For a faster, safer, and more efficient process, it is best to use an automatic brake bleeder.
What Is The Difference Between A Brake Bleeder And A Bleeder?
In fact, bleeder and bleeder are not distinct terms, as both refer to actions or tools used in the brake bleeding process.
Bleeding brakes means expelling old air/fluid and replacing it with new fluid. In this sense, a brake bleeder is needed to perform the operation.
How Does A Brake And Clutch Bleeder Work?
The operation varies depending on the type of bleeder, but the goal is always the same: to expel the old fluid and introduce new fluid without air bubbles.
With an automatic brake bleeder, the fluid is pushed under pressure controlled by the reservoir, forcing the old fluid out through the bleed valves (bleed screws).
In ABS systems, stable pressure reduces the risk of residual bubbles.
What Types Of Brake Bleeders Are Available?
There are several types of bleeders, with different characteristics and different applications:
| Type of bleeder | How it works | Advantages | Ideal for |
| Manual | Uses pressure to expel the fluid. | Simple, economical, and easy to use. | Sporadic or domestic use. |
| Pneumatic | Uses compressed air to create a continuous flow of fluid. | Fast, efficient, and reduces physical effort. | Workshops with a compressor. |
| Automatic (Electric) | Connected to the power supply, it maintains constant pressure and performs the bleed automatically. | High precision, ideal for ABS. Reduces human error. | Workshops with high volume of work. |
| With vacuum pump | Creates a vacuum to pull the fluid through the circuits. | Very effective for complex circuits. | Vehicles with air bubbles that are difficult to remove. |
Is It Possible To Use A Brake Bleeder On All Types Of Vehicles?
Yes, it is possible to use a brake bleeder on most vehicles. However, it is important to note that compatibility depends on the caps/adapters.
On some ABS/ESP models, a valve cycle via diagnostics is required.
Is It Possible To Adapt A Brake Bleeder To Different Types Of Braking Systems?
Yes, many models include adapters for ABS systems, disc brakes, and drum brakes, increasing their versatility.
How To Use The Brake Bleeder?
The use of the brake bleeder varies depending on the type of tool. As a general rule, it is used as follows:
- Vehicle preparation: make sure the vehicle is stable and that the braking system is accessible;
- Connect the bleeder: connect the tool to the brake bleeder and ensure a secure connection;
- Bleeding: follow the equipment instructions to remove air from the system;
- System check: test the braking system to ensure it is working properly.
What Are The Signs That A Vehicle Needs To Have Its Brakes Bleed?
Brakes are essential for vehicle safety, so identifying signs that they need to be bled can prevent serious problems.
In this regard, it is essential to pay attention to the following signs:
1. Soft Or Spongy Brake Pedal
If the brake pedal feels soft or offers little resistance when pressed, it may indicate the presence of air in the braking system.
2. Reduction In Braking Capacity
If the vehicle takes longer or a greater distance to stop, it may be a sign of contamination in the brake fluid or air bubbles in the system.
3. Vibration Or Noises During Braking
Although vibration or noises can be caused by worn brake pads or warped discs, they can also indicate problems with the brake fluid.
4. Warning On The Instrument Panel
Many modern vehicles are equipped with sensors that monitor the braking system.
If the brake warning light comes on in the instrument panel, it may mean that the brake fluid needs to be checked and possibly bled.
5. Fluid Leakage
If there is brake fluid leakage around the cylinders, calipers, or hoses, the system may lose pressure.
This problem requires not only bleeding the brakes, but also repairing the leak.
How Often Should I Bleed My Brakes?
The recommended frequency depends on the brand and type of oil. However, ideally, this process should be performed every 2 years or 30,000 km.
In addition, you must bleed the brakes whenever:
- The fluid is dark or contaminated;
- Work is done on the hydraulic system (e.g., replacement of calipers or brake shoes);
- The pedal feels spongy or has a long travel.
What Happens If You Don’t Bleed The Brakes Properly?
If you don’t bleed the brakes correctly, air will enter the hydraulic circuit. As a result, the pedal will feel spongy and have a long travel, the braking distance will increase, and vapor lock may occur under stress.
On the other hand, braking will become uneven, the ABS/ESP lights may come on, and the car may fail its vehicle inspection.
What Tools Should I Use To Bleed The Brakes?
To perform the task correctly, you will need:
- Manual, pneumatic, automatic, or vacuum pump brake bleeder;
- Brake fluid compatible with the vehicle;
- Bleed valve wrench;
- Collection container;
- Protective gloves and goggles.
In ABS systems, it is recommended to use an automatic brake bleeder to avoid damage and ensure effectiveness.
Can I Bleed The Brakes Myself At Home?
Yes, as long as you have the right tools and some technical knowledge.
An automatic or manual brake bleeder with a check valve makes the process much easier.
However, due to a lack of experience and technical knowledge, performing this process at home can cause some problems.
What Are The Main Problems When Bleeding The Brakes And Clutch And How Can They Be Solved?
When bleeding the brakes or clutch, some problems may arise that affect the effectiveness of the hydraulic system.
Knowing how to recognize and correct them is essential to ensure safety and prevent further damage.
Here are the most common ones:
- Spongy pedal after bleeding: repeat in the correct sequence and check the connections;
- Leaks in the bleed nipples: tighten/replace the valve and check the gasket;
- Very dark fluid: completely change the fluid;
- No pressure in the automatic bleeder: check the compressor, electrical connection, and hoses;
- Empty reservoir: maintain level and prefer continuous supply;
- Persistent failures: look for remaining air or leaks at other points or check if the installation is incorrect.
What Are The Benefits Of Using A Professional Brake Bleeder?
Choosing a professional brake bleeder has several advantages, such as:
- Greater efficiency: the process is performed more quickly and with greater precision, which helps to increase workshop productivity;
- Fewer errors: completely removing air from the system ensures effective braking;
- Durability: quality tools are more resistant and have a longer service life;
- Safety: ensures that the braking system works at its maximum capacity, increasing customer satisfaction.
What Precautions Should I Take When Using A Brake Bleeder?
To ensure the safety and durability of the equipment, you should:
- Read the instruction manual before use;
- Use equipment that is compatible with the braking system;
- Clean the equipment after each use.
How Do I Choose The Ideal Brake Bleeder For My Workshop?
Choosing the right brake bleeder for your auto repair shop depends on several factors, such as the volume of work, the type of vehicles you repair, and your available budget.
With that in mind, here are the main aspects to consider:
- Compatibility: ensure that it works with the systems of the vehicles you work with most. There are universal models and others specifically for ABS or high-performance brakes;
- Reservoir capacity: in large vehicles or for consecutive services, a larger reservoir avoids stops to refill;
- Value for money: an efficient model reduces the time taken to complete the task and increases productivity;
- Workload: for high volume, an electric/pneumatic brake bleeder (fast and accurate) is ideal. For low volume, a manual model (more economical) is best.
Where Can I Buy A Brake Bleeder?
This type of tool is available in specialized stores and online.
The KROFtools catalog, for example, offers high-quality options tailored to the needs of workshops.
To purchase KROFtools tools, simply go to an official dealer.
What Brake Bleeders Are Available In The Kroftools Catalog?
KROFtools offers several tools specifically for the braking system, including two models of brake and clutch bleeders that facilitate the maintenance of these hydraulic circuits.
Discover our suggestions.

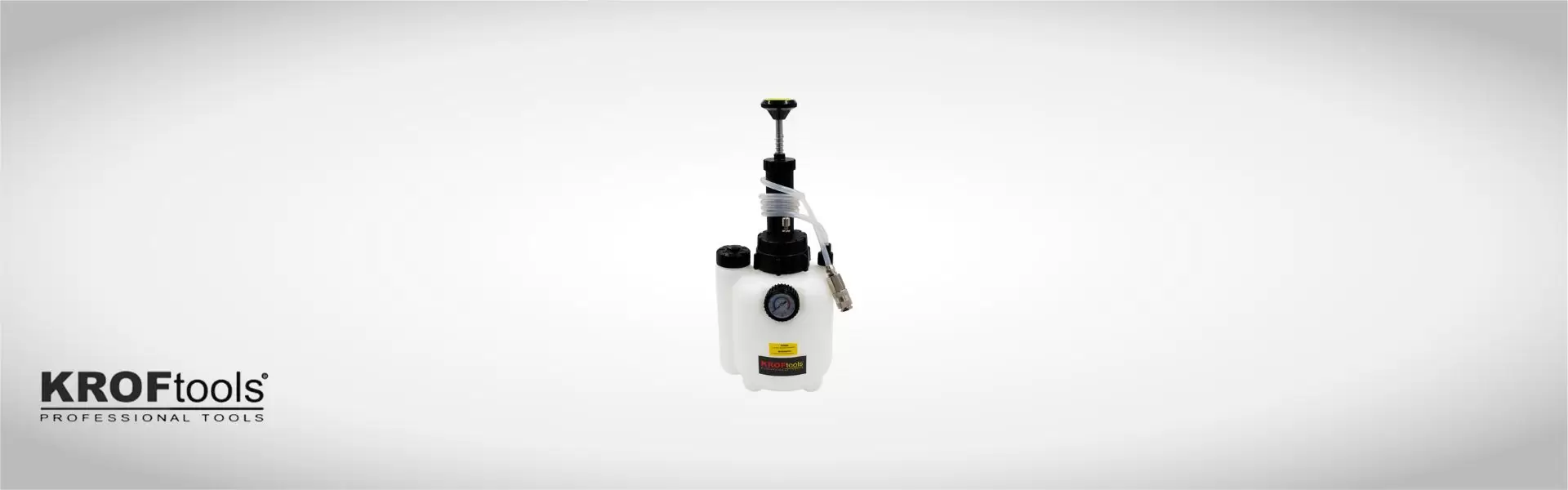

Brake And Clutch Bleeding System
Pressure-operated, compatible with most European vehicles, and allows working pressure up to 2 bar (max. 5 bar).
Includes 90° angle connector with 42 mm cap, ideal for ABS systems.
Click on the image for more information about the Brake And Clutch Bleeding System (Ref. 2509).

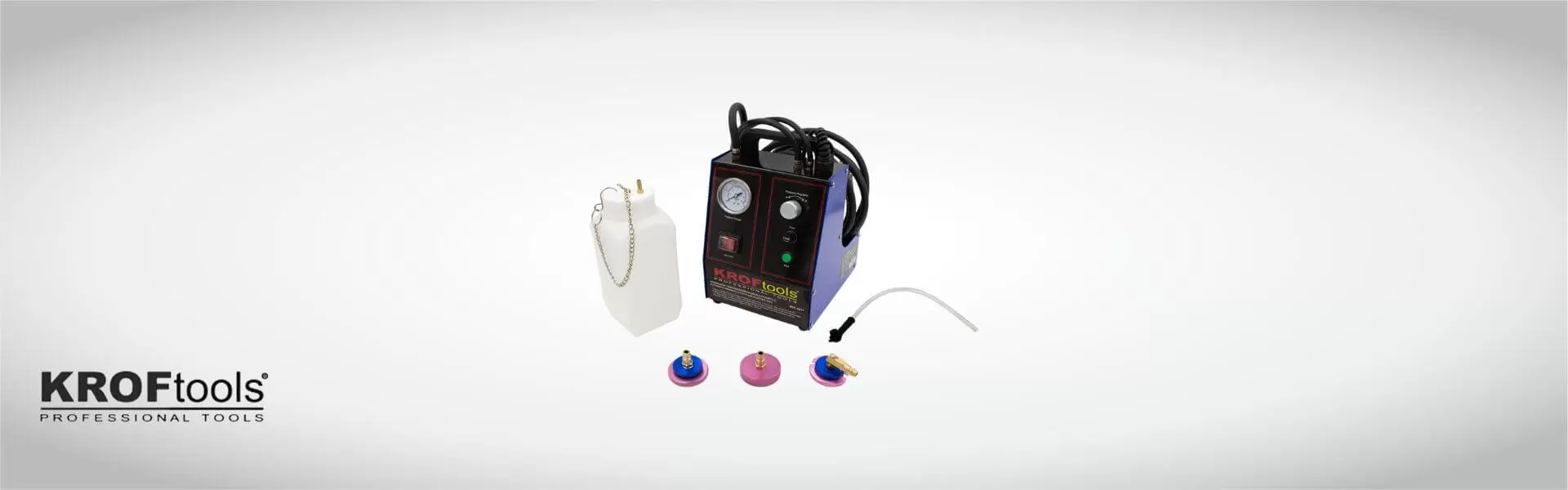

Automatic Brake/Clutch Fluid Bleeder 220v
This is an electric and automatic solution for workshops with a high volume of work.
Adjustable pressure (0.6–3 bar), flow rate of 1.2 L/min, 3.5 m hose, and protection system against operation without fluid.
Click on the image for more information about the Automatic Brake/Clutch Fluid Bleeder 220v (ref. 2511).
What Is The Average Price Of A Quality Brake Bleeder?
The price of a brake bleeding kit depends on the type and technology involved.
As a general rule, the price of an electric brake bleeder is around a few hundred euros. The most basic models, such as manual ones, cost around a few dozen euros.
Want to increase the efficiency of your workshop? Explore the full range of professional tools from KROFtools and follow our daily content on Facebook.
